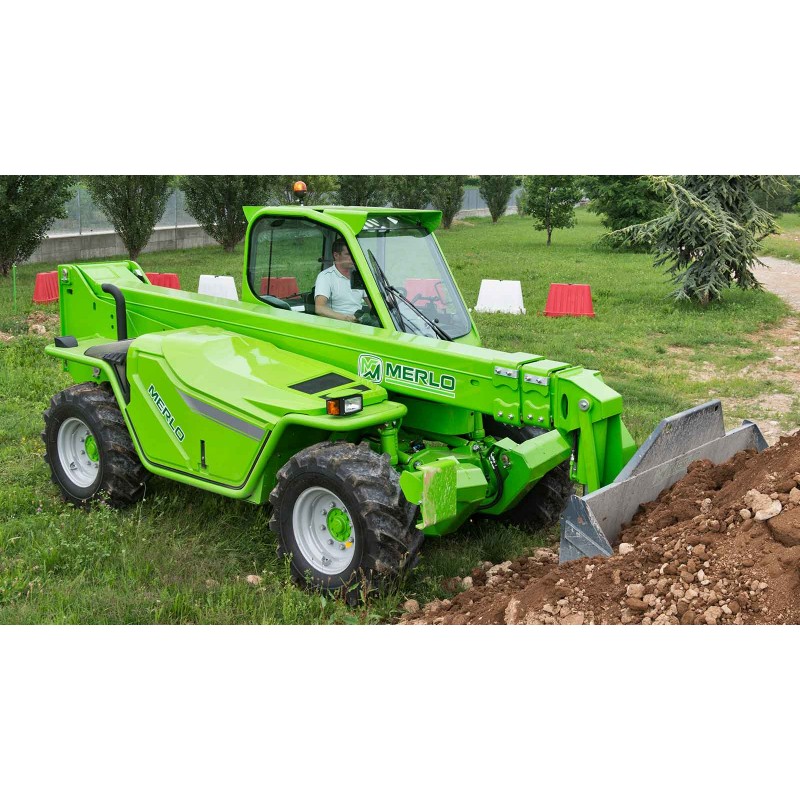

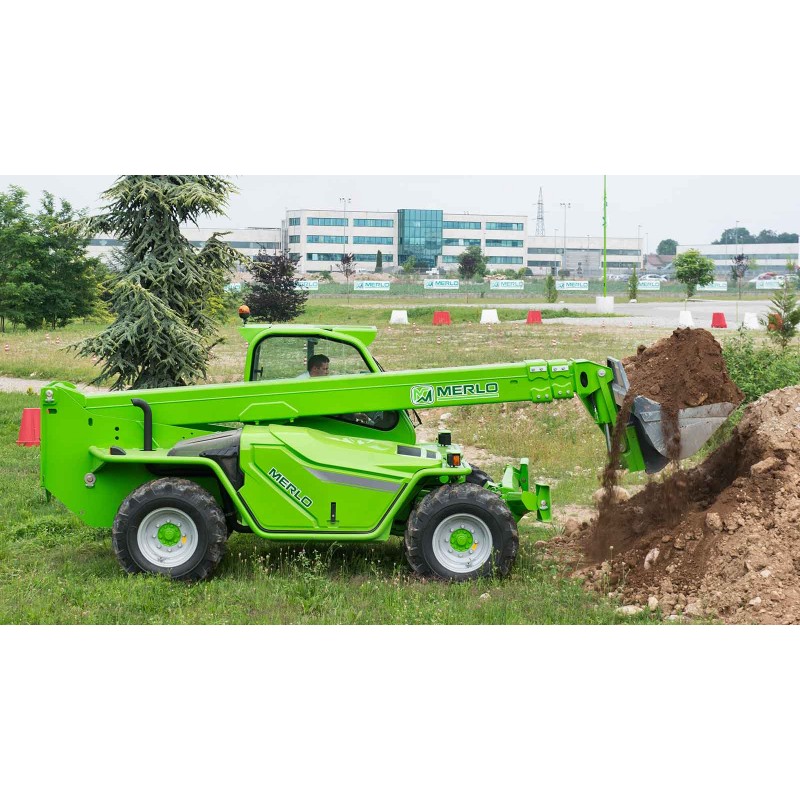

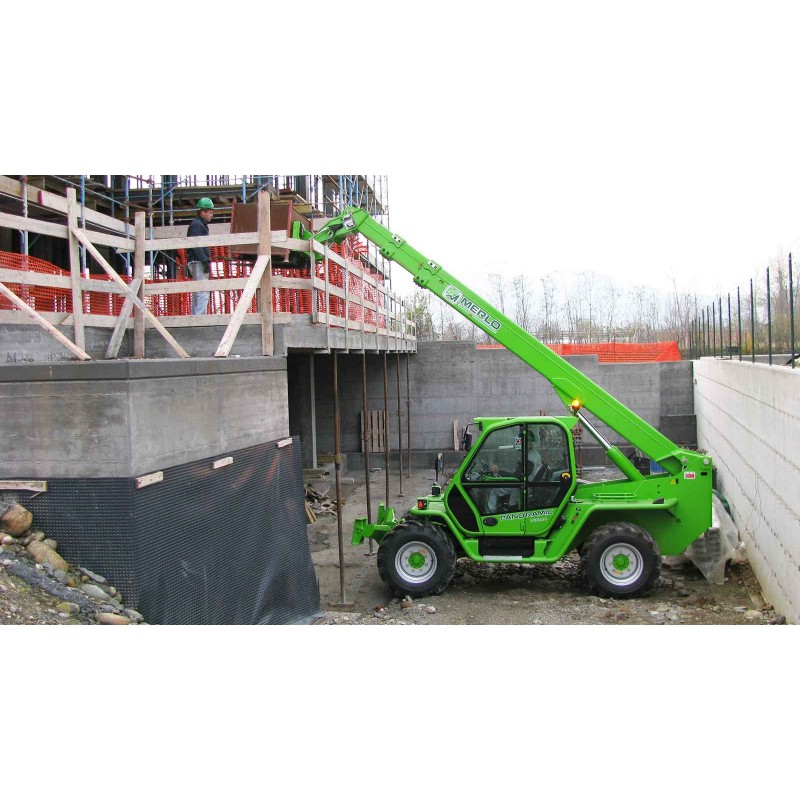

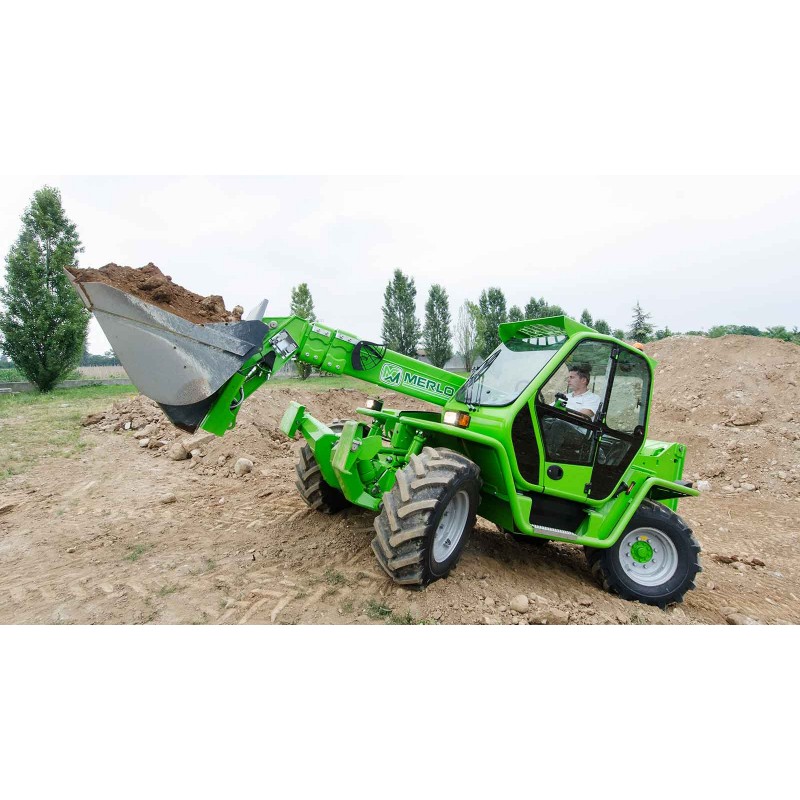

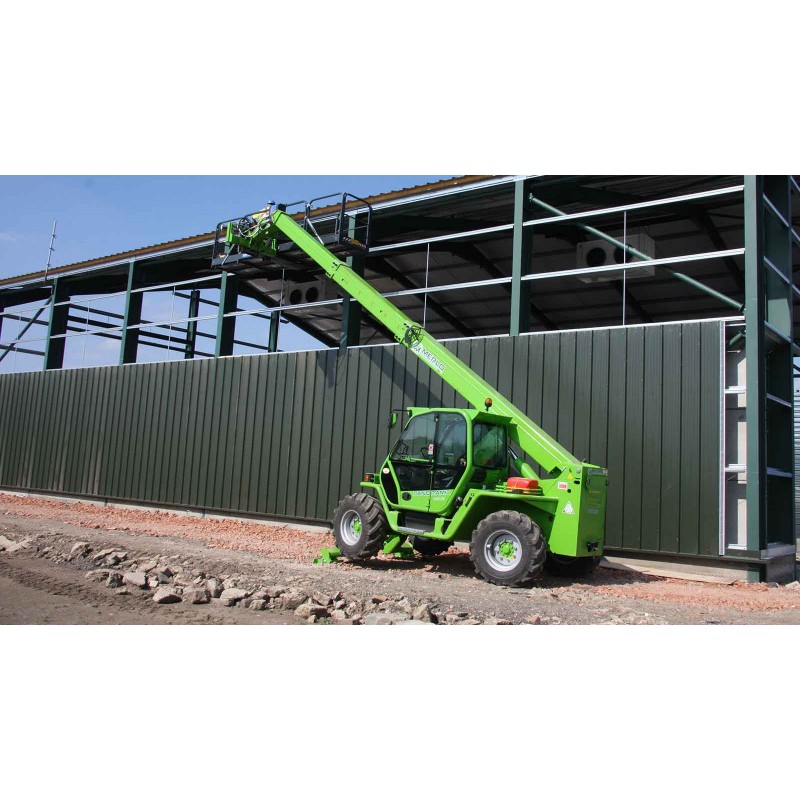

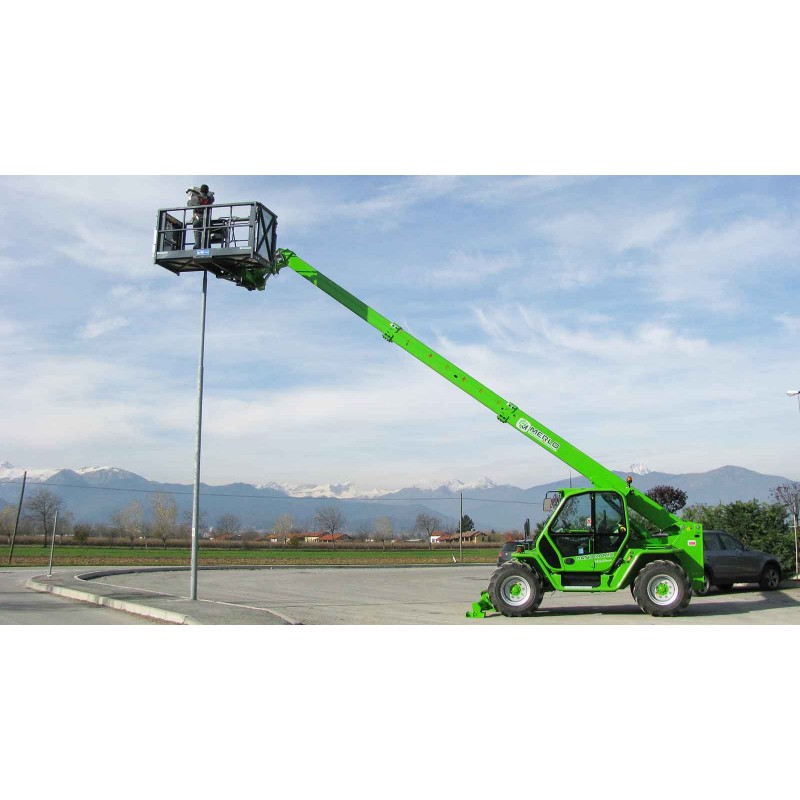

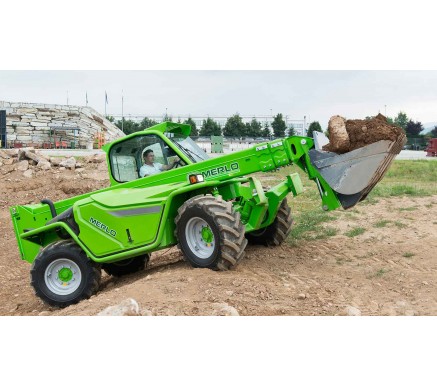

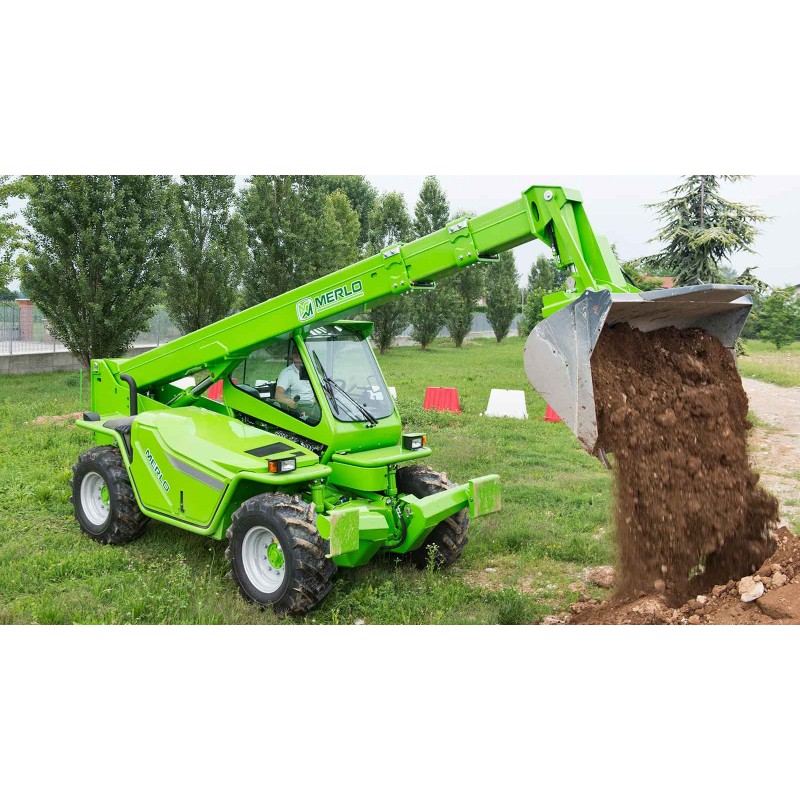

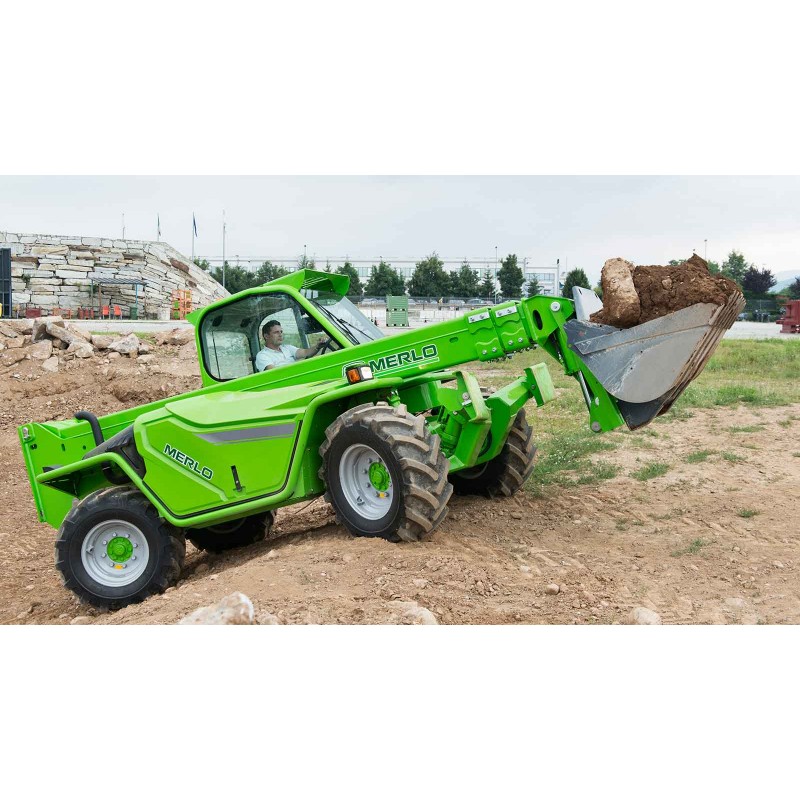

Merlo P38.13EE Telehandler
Panoramic P38.13
New
This product is no longer in stock
Availability date:
$0.00
Enquire NOWPanoramic P38.13
Merlo developed the Panoramic system in 1987, and it marked a new era in the telescopic handler field. The technological concept was so revolutionary and so far-reaching (in terms of panoramic visibility, safety, performance, comfort etc), that other manufacturers only now, after decades, have fully understood the true benefits of the Merlo system, and have incorporated it on their own products.
Maximum lift height | 12.6 metres |
Maximum Load Capacity | 3800 kg |
Transmission | Hydrostatic |
Maximum forward reach | 8.6 metres |
Capacity at maximum height | 3500 kg |
Capacity at maximum forward reach | 800 kg |
Power at 2400 rpm (97/68/CE) | 74,5 kW (101 HP) |
Maximum travel speed | 25 kph |
Total unladen mass (with forks) | 8700 kg |
Boom sideshift | Standard |
Frame levelling | Standard |
Hydraulic pump | Load-Sensing |
Tyres | 400/70-20 |
