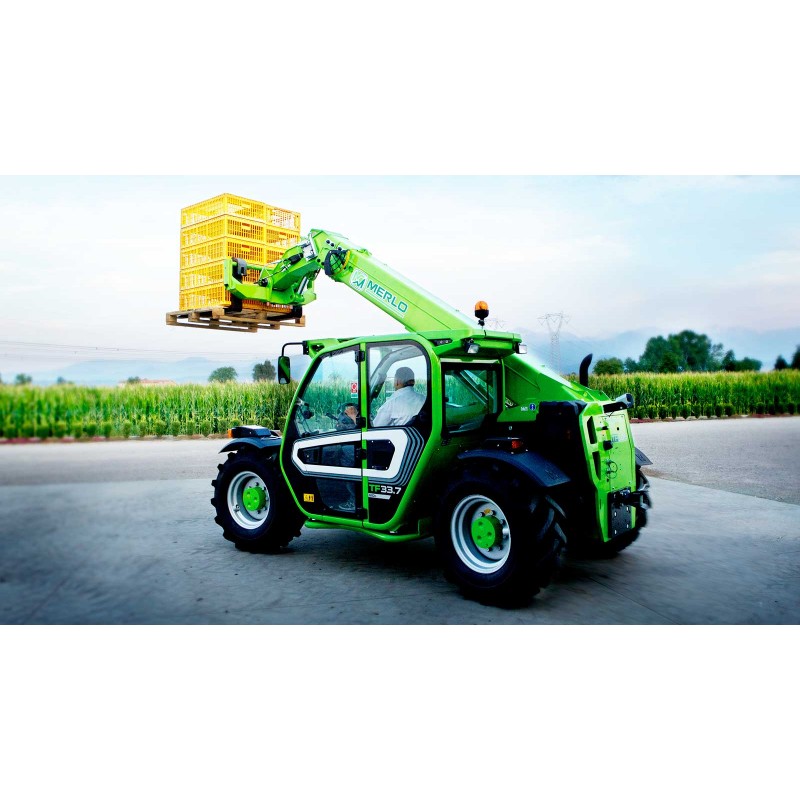

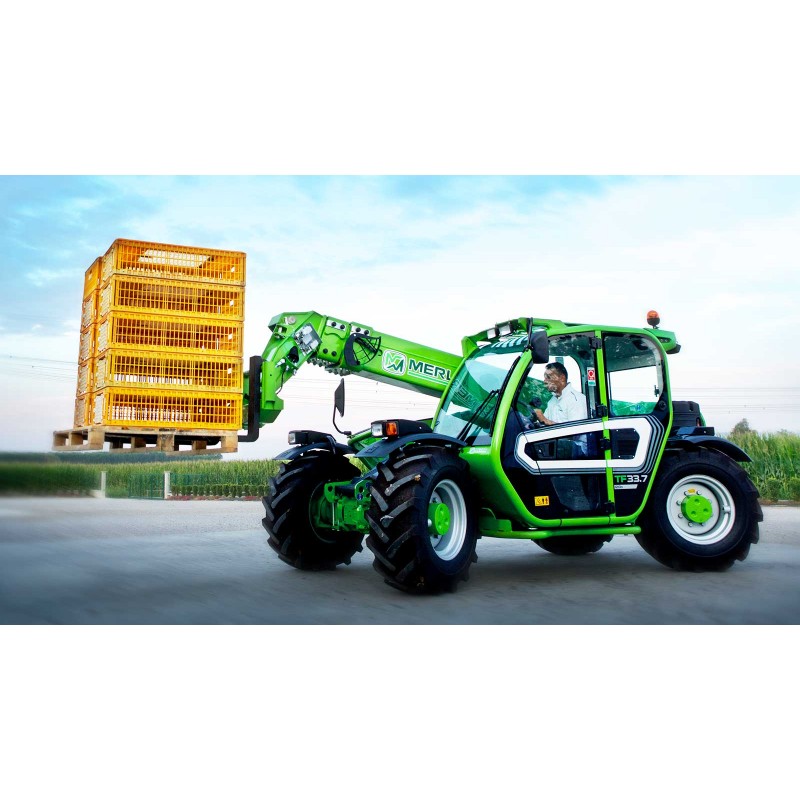

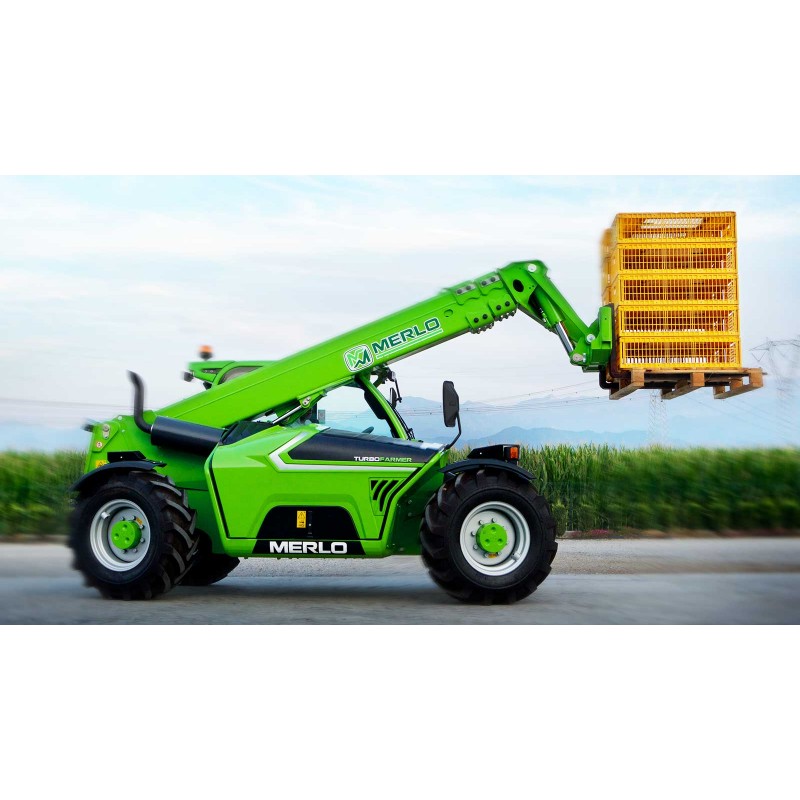

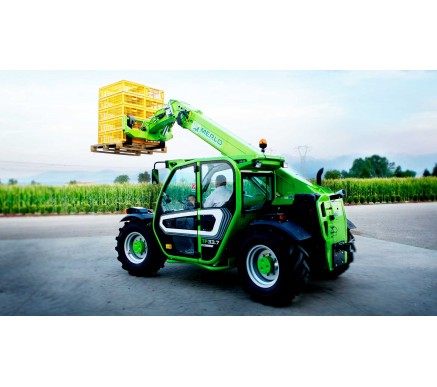

Merlo TF33.7-100 Telehandler
The farming family of machines has been developed by Merlo to expand the capabilities of the farm tractor.
Merlo TF33.7-100 Telehandler
New
The farming family of machines has been developed by Merlo to expand the capabilities of the farm tractor.
$0.00
Enquire NOWThe farming family of machines has been developed by Merlo to expand the capabilities of the farm tractor. The much greater materials handling and loading productivity of a teleporter was combined with the accepted levels of towing performance and the use of trailed implements of a tractor.
Specifications
Operating Weight : 6,450 kg
Maximum Lift Capacity : 3.0
Maximum Lift Height : 6,600 mm
Maximum Reach : 3,600 mm
Maximum Speed : 40 km/h
Ground Clearance : 300 mm
Drive : 4x4 2 Speed Hydrostatic
Length : 4,325 mm
Wheelbase : 2,740 mm
Width : 2,100 mm
Height : 2,030 mm
| Air conditioned Telehandlers | Yes |
| JoyStick Control | Yes |
| Engine | Kubota V3800 Euro III |
| Lifting Capacity | 3300 |
| Operating Weight | 6500 |
| Maximum lift height | 6.3 metres |
| Maximum Load Capacity | 3300 kg |
| Width | 2100mm |
| Length | 4310mm |
| Height | 2020mm |
| Max Speed | 40 KPH |
| Transmission | Hydrostatic |
| Maximum forward reach | 3.6 metres |
| Capacity at maximum height | 2300 kg |
| Capacity at maximum forward reach | 1250 kg |
| Power at 2400 rpm (97/68/CE) | 100 HP |
| Hydraulic pump | Load-Sensing & Flow Sharing |
| Tyres | 405/70-20 |
